Included in this article:

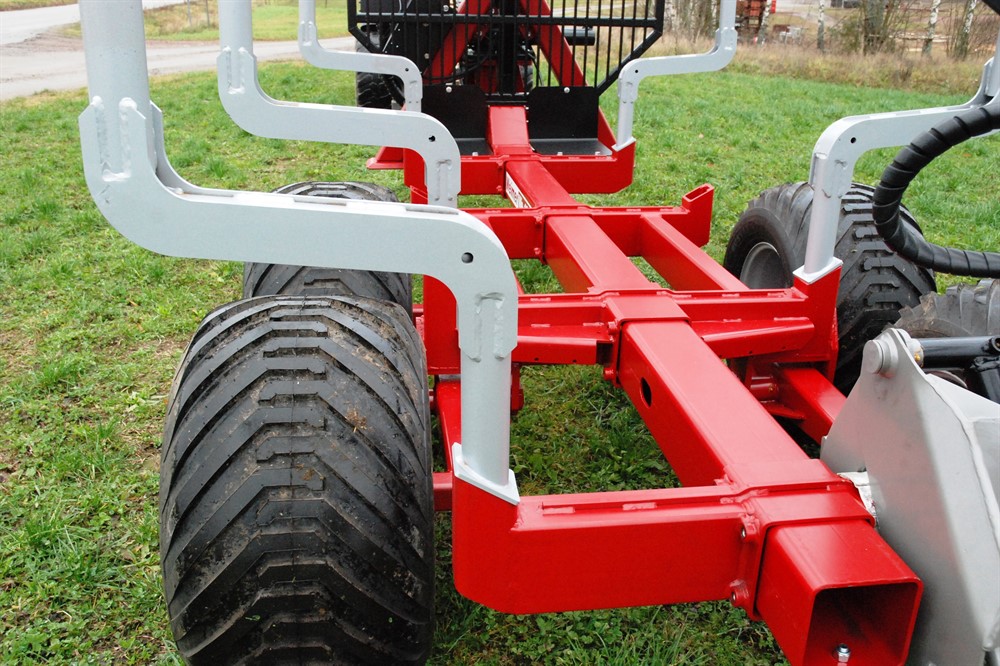

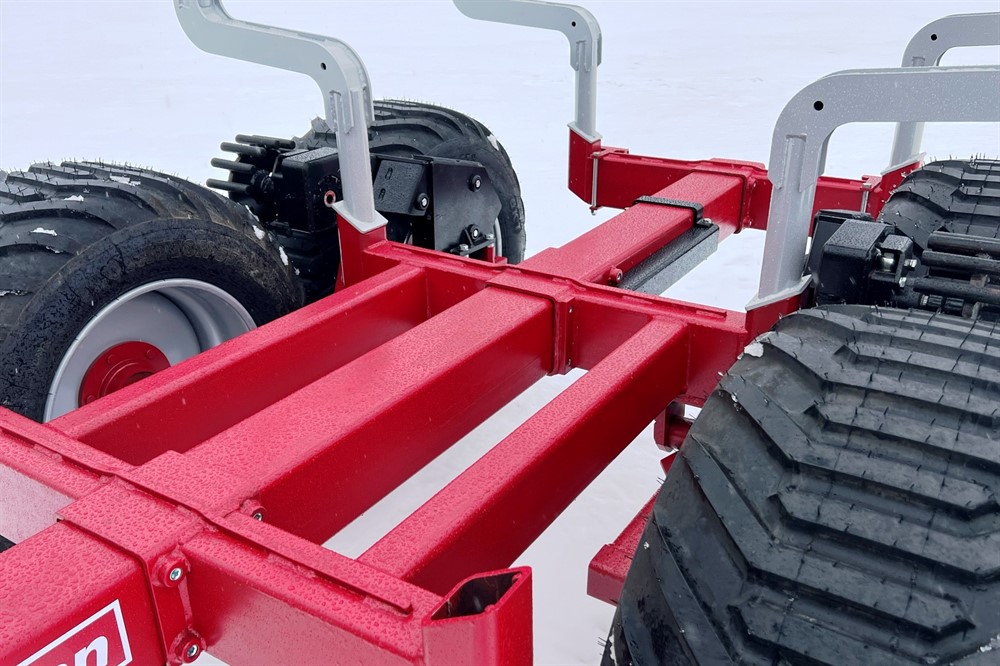

The We-12 with movable banks and bogie, frame control.
Wheels 500 / 50-17 18 pr. Telescopic support legs standard (pictures with three-point tripods).

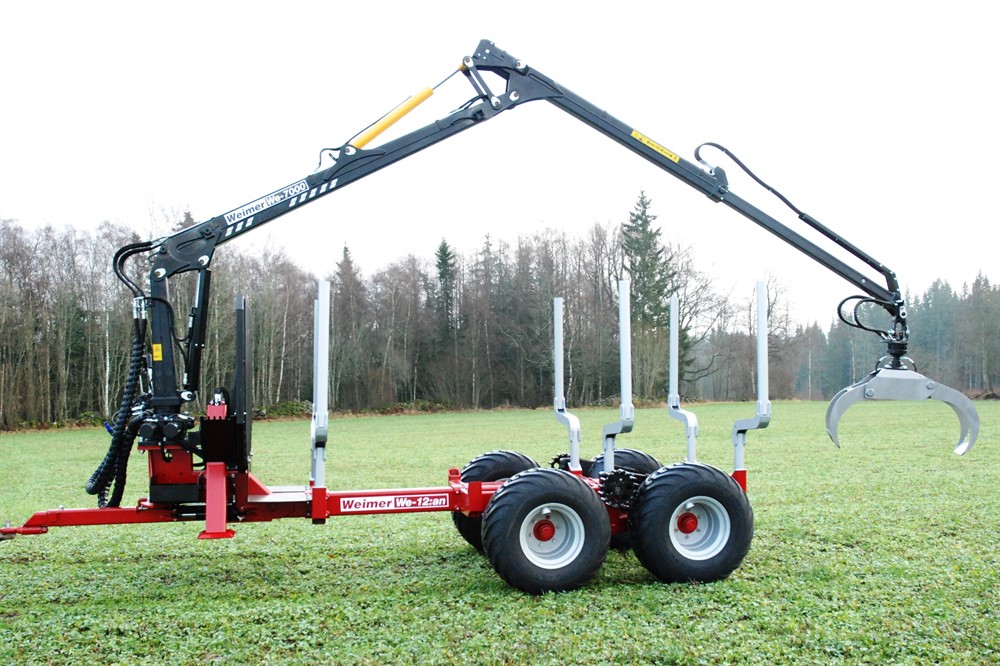

We-7000 with rotator 4 ton and grip We-20B.

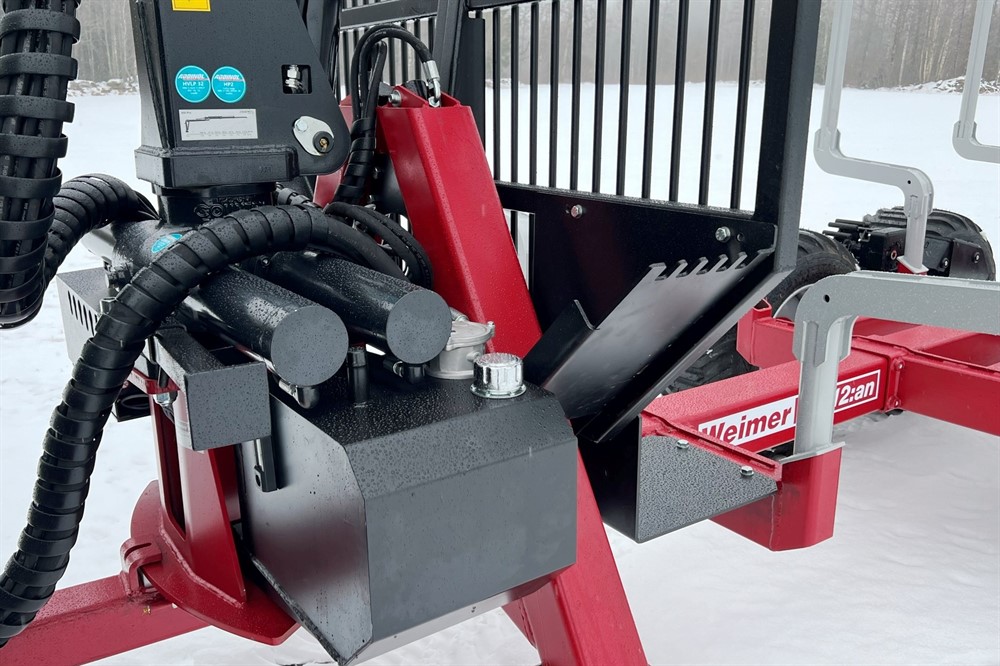

Valve multi-lever D3M 8 sections 50L.
Technical specifications:
| We-12:an |
|
We-7000 |
|
| Loading capacity |
12 tons |
Max radial range |
7,0 m |
| Total length |
5.8 m |
Working pressure |
190 bar |
| Total width |
2.25 m |
Crane rotation |
380° |
| Loading area |
2.5 m² |
Slewing cylinder |
4 pcs |
| Ground clearance |
600 mm |
Turning capacity |
15 kNm |
| Towing eye movement |
± 900 mm |
Boom extension |
1,65 m |
| Frame beam telescope |
± 150 mm |
Lifting capacity in grapple |
900 vid 4 m |
| Frame control cylinders |
2 pcs |
|
650 vid 5 m |
| Wheel |
500 / 50-17 18 pr |
|
550 kg vid 6 m |
| Bogie climbing heights |
560 mm |
|
450 kg vid 7 m |
| Bunks / stakes |
4/6 supports |
Grapple area |
0.20 m² |
| Central tube |
180x180x8 mm |
Rotator capacity |
840 Nm |
| Weight |
1600 kg |
Weight |
810 kg |
| |
|
|
|
