Spare parts We-1400/1700/2200 M3

Former article no. 1311110

Former article no. 1311121

Former article no. 1311130

Former artikel no. 1311140

Former artikel no. 1311150

Former artikel no. 1311160

Former artikel no. 1311180

Replacement of motor attachment
- Remove the hoses on the motor, note how they are located
- Remove cylinder two
- Remove the screw on the motor attachment shaft
- Pull out the motor attachment from the shaft
- Remove the screws on the motor
- Turn the engine so you can see and loosen the stop screw on the gear, loosen it
- Tap gently on the motor shaft ant the attachment which holds against it so the motor shaft gets loose from the gear
- Reassemble new engine bracket in reverse order
- Check and turn hoses if necessary so that the motor switches on and off easily

Former artikel no. 1311190

Fits We-700/1400

Fits We-1700.

Fits We-2200

Fits We-1400 and We1700 with the above mentioned orbitmotor.

Fits We-2200 with the above mentioned orbitmotor.

Former artikel no. 1311200

Former artikel no. 1311291

Former artikel no. 1311292

Former artikel no. 1311300

Former artikel no. 1311455

Former artikel no. 1311450

Former artikel no. 1311458-1

Former artikel no. 1311490

Former artikel no. 1311488

Former artikel no. 131010900

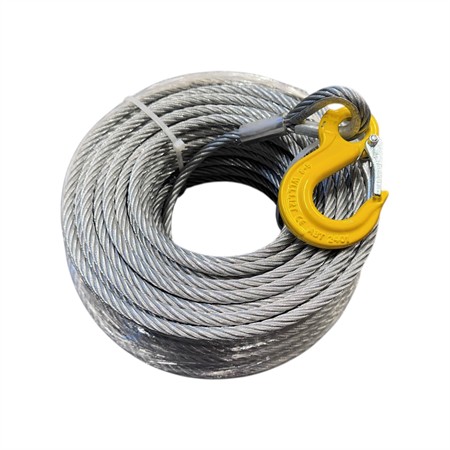

Wire with hook 6mm 40m

Vajer med säkerhetskrok
Diameter: 6 mm
Konstruktion: 8x19-IWRC / 201 trådar
Ytbehandling: Förzinkad
Min. Brottkraft 2328 N/mm2: 25,6 KN (ca 2500 kg)
-10 % för pressning av kaus = ca 2250 kg

Former artikel no. 131010910

Diameter: 8 mm
Construction: 6x19-FC / 114 threads
Surface treatment: Galvanized
My. Breaking force 1770 N/mm2 34.80 KN (approx. 3400 kg)
-10% for pressing caus = approx. 3060 kg

Max flöde: 60 L
Max tryck: 250 bar

Included in this article: transmitter

The transmitter and receiver are programmed at delivery. If new programming is required, follow this instruction:

1. Press the function key No. 3 on the receiver (picture nr 2) of at least 0.3 sec, max 4 sec. (Allow approximately one second between key presses). Red LED, No. 6, lit ready for programming. 2. Press the select button No. 4 for at least 0.3 sec max 4 sec. Red LED lights up the relay. 3. Press the Select button No. 4 once again, just as long. 4. At last, press the transmitter button until the red LED No. 6 flashes 3 times. The programming is completed.

The receiver can be programmed with one transmitter at a time. If additional transmitters are programmed, the current transmitter will be replaced. Open the cover at and store the transmitter in the receiver as follows:

1. Start the transmitter as instructed and hold any button pressed.
2. On the receiver: Hold the "Code" button until the relay LEDs light up and then release it. The receiver remains in listening mode for 8-10 seconds.
3. Continue to press the transmitter button until the receiver button finds the transmitter. Relay LEDs will flash three times. Note that it may take up to ten seconds before the receiver will find the transmitter.

(Fig. 3 shows the connection of electrical cables in the receiver)

Åkerströms Sesam 800 Mobile

Sesam 800 Mobile is a very robust system specially developed for smaller mobile applications such as tail lift lifts and winches for quad bikes and forest machines. The system is IP67-rated, which means that it can handle large stresses with dust and moisture without problems.
Developed for extreme environments where high demands are placed on vibration and shock sensitivity

• Waterproof and dustproof design of transmitter and receiver (IP67)
• Automatic frequency selection of 12 frequencies
• Duplex (two-way communication) with acknowledgment function
• Two functions + a main relay
• Extremely fast response time
• Receiver with fiberglass-reinforced enclosure and equipped with a diaphragm valve
• Transmitter in shock-resistant and modern design
• Robust, easy-to-operate buttons (even with gloves) that can handle over one million prints

Åkerströms Sesam 800 Mobile

Sesam 800 Mobile is a very robust system specially developed for smaller mobile applications such as tail lift lifts and winches for quad bikes and forest machines. The system is IP67-rated, which means that it can handle large stresses with dust and moisture without problems.

Developed for extreme environments where high demands are placed on vibration and shock sensitivity

• Waterproof and dustproof design of transmitter and receiver (IP67)
• Automatic frequency selection of 12 frequencies
• Duplex (two-way communication) with acknowledgment function
• Two functions + a main relay
• Extremely fast response time
• Receiver with fiberglass-reinforced enclosure and equipped with a diaphragm valve
• Transmitter in shock-resistant and modern design
• Robust, easy-to-operate buttons (even with gloves) that can handle over one million prints

This model has DMG, dead man's grip, you press two buttons to winch in

Learning of Transmitter If any part of the system has been replaced, the receiver and transmitter will need to be paired together.

Remove the plastic caps on the back of the receiver to reach the screws and disassemble. Press the button ”ON” on the transmitter until the green indicator lights. The transmitter is now active. Press the Learn/Erase button on the receiver until LED 7 is ON. (Fig. 2) The Learn Mode will be active for 10 seconds (as long as LED 7 is ON). Press transmitter button 1 ”IN” to pair the transmitter to the receiver. LED 7 (fig. 2) blinks three times if the learning has succeeded. Install the receiver cover and tighten the six screws to 2.0 Nm Mount the caps over the screws.

Använd en bandsling om stocken för att spara vajern.

Använd en bandsling om stocken för att spara vajern.
